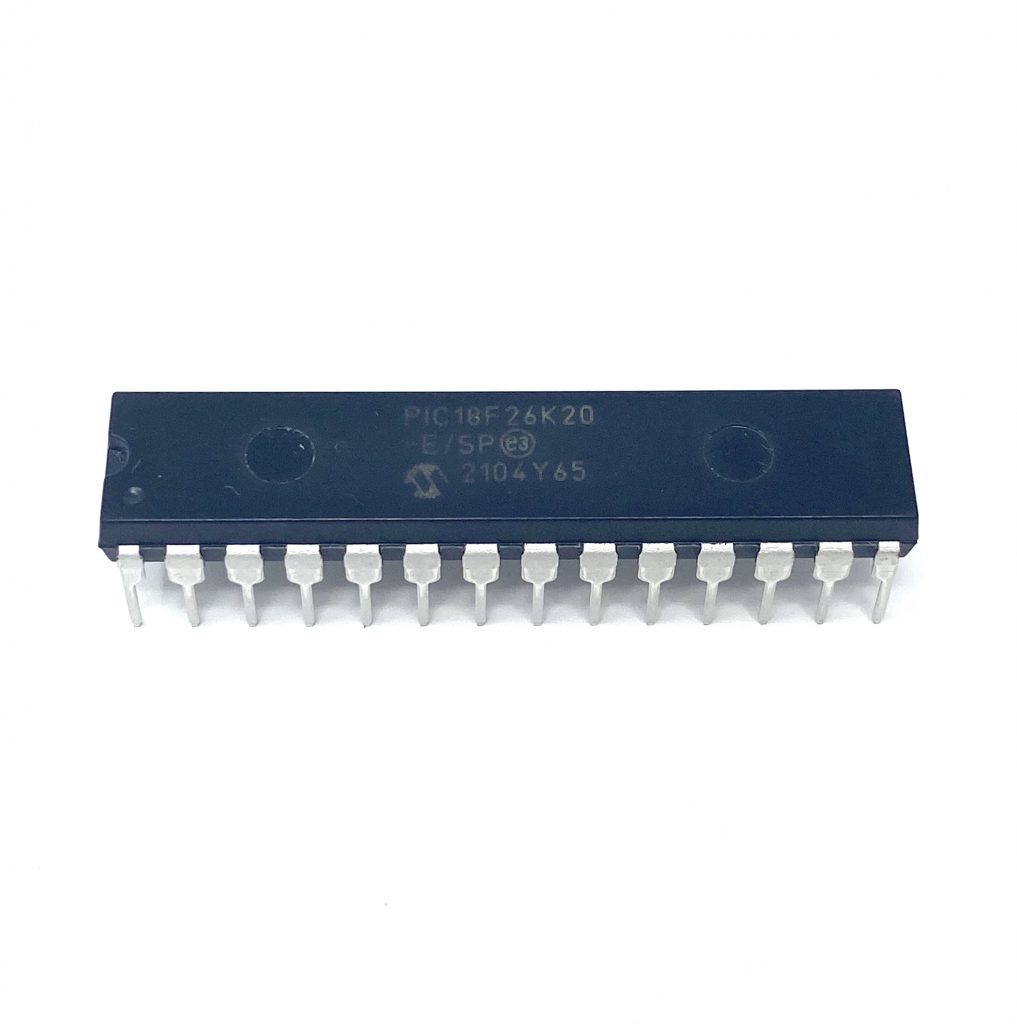

Minimig SuperPIC

Overview

ARM Controller for MiniMig

SuperPIC upgrade allows one to select to increase the CPU speed from 7.09 to 49.63 MHz with a 4 KB zero waitstate CPU cache. But it requires an FPGA core to actually carry it out (which works with the 16 MHz 68SEC000 chips). The harddrive support is available by a virtual A600/A1200 style GAYLE parallel ATA interface. Up to 551 kByte/s is possible with a minor hardware modification. Otherwise only ~300 kByte/s is possible. In addition this chip can support four floppy drives.

What’s Included

ARM Minimig board.
