Minimig v1.1 (After Dark)


Minimig started around January 2005 as a proof of concept by Dutch electrical engineer Dennis van Weeren. He intended Minimig as the answer to the ongoing discussions within the Amiga community on implementing the Amiga custom chipset using an FPGA.

Out of stock

SKU: 53874 Category: Tags: , , , , , ,


Enjoy Amiga with real 68k!

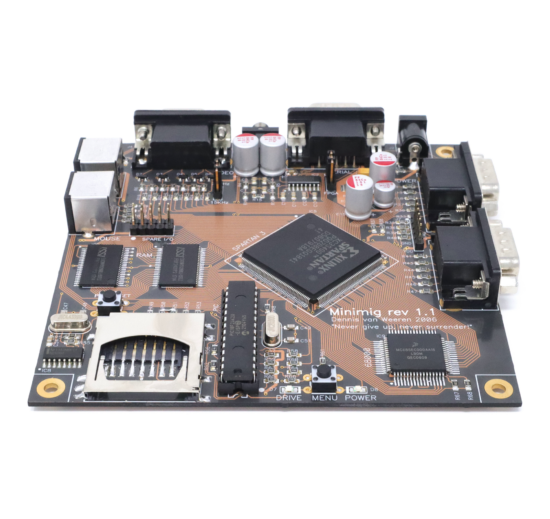

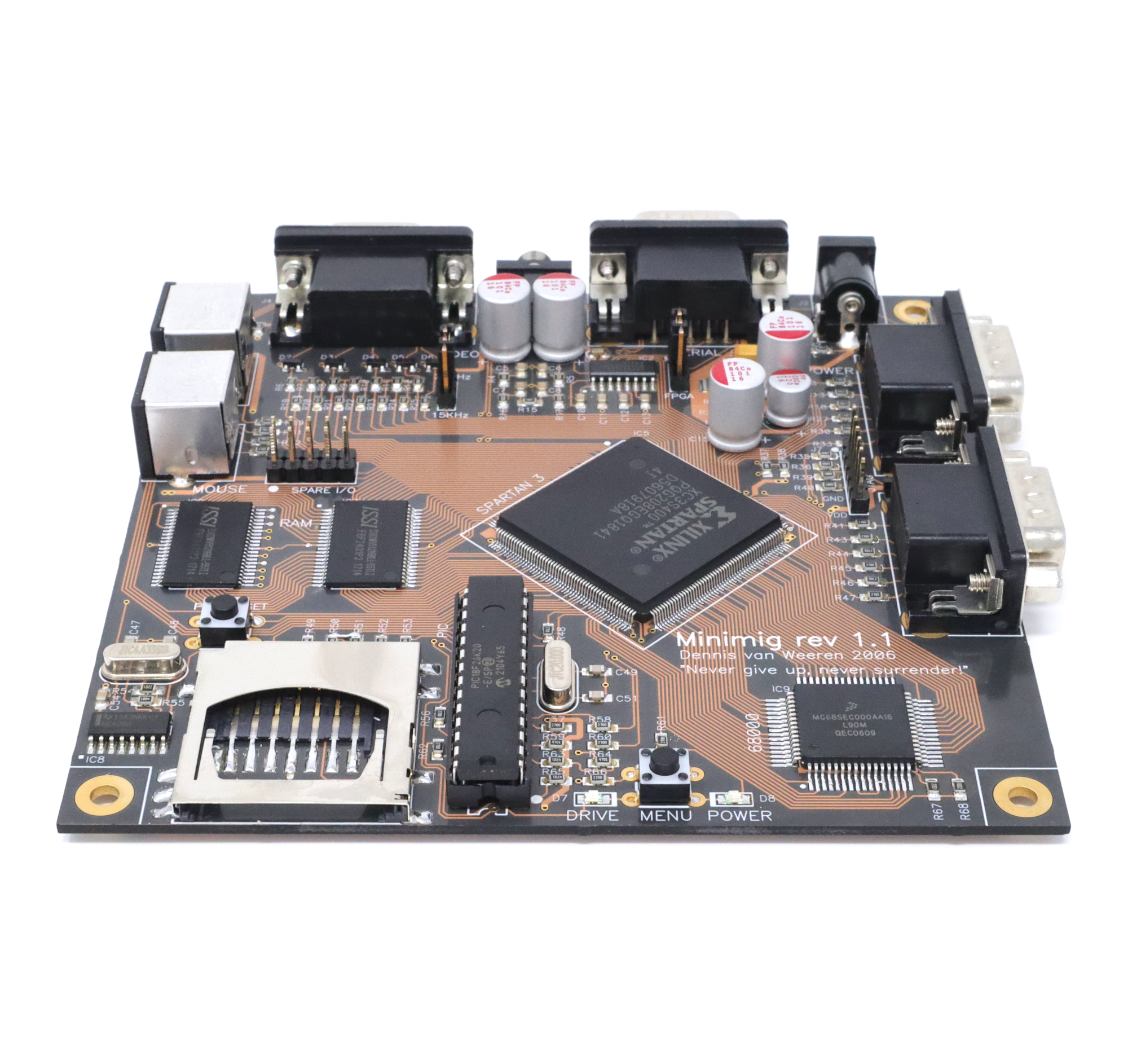

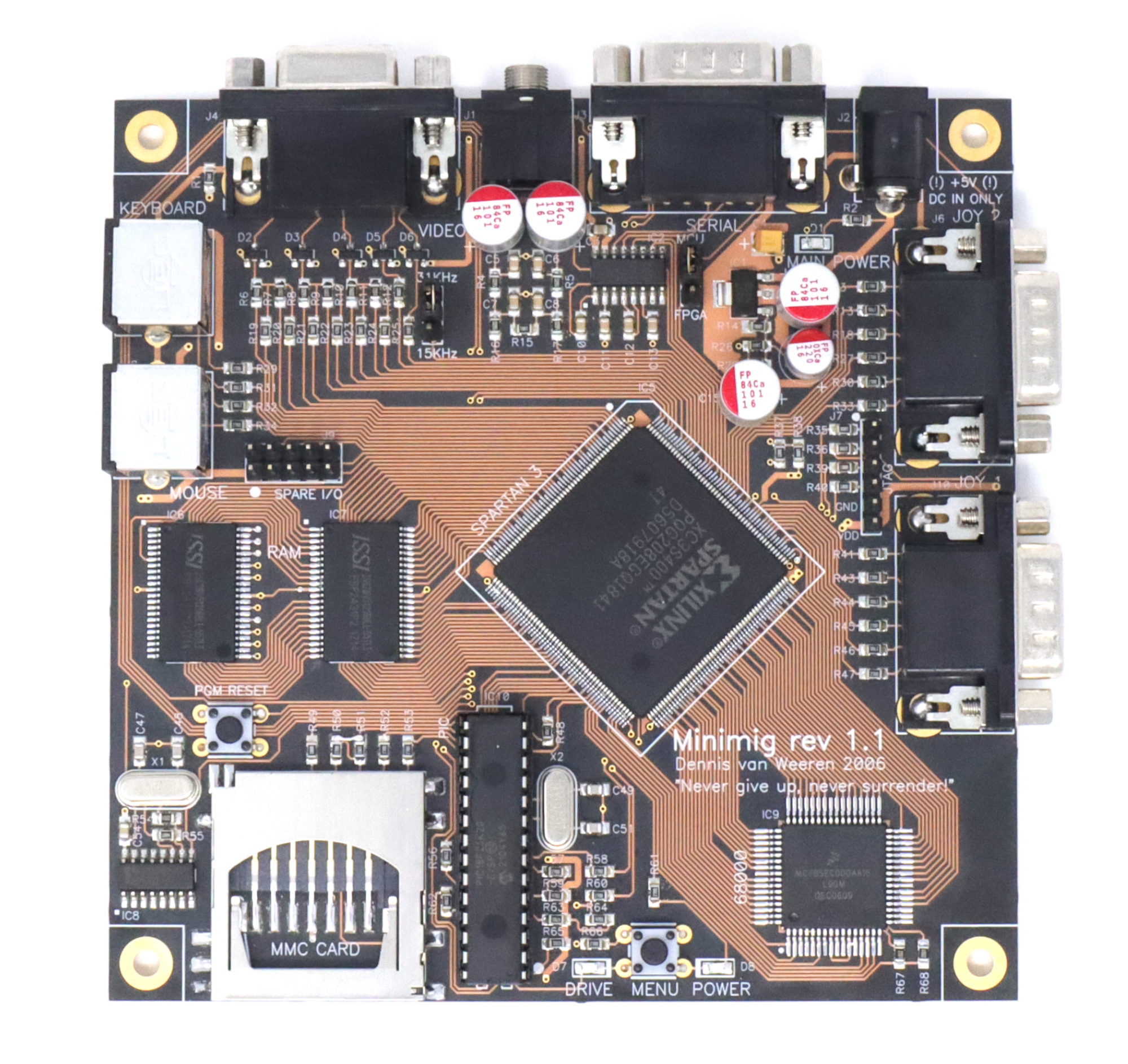

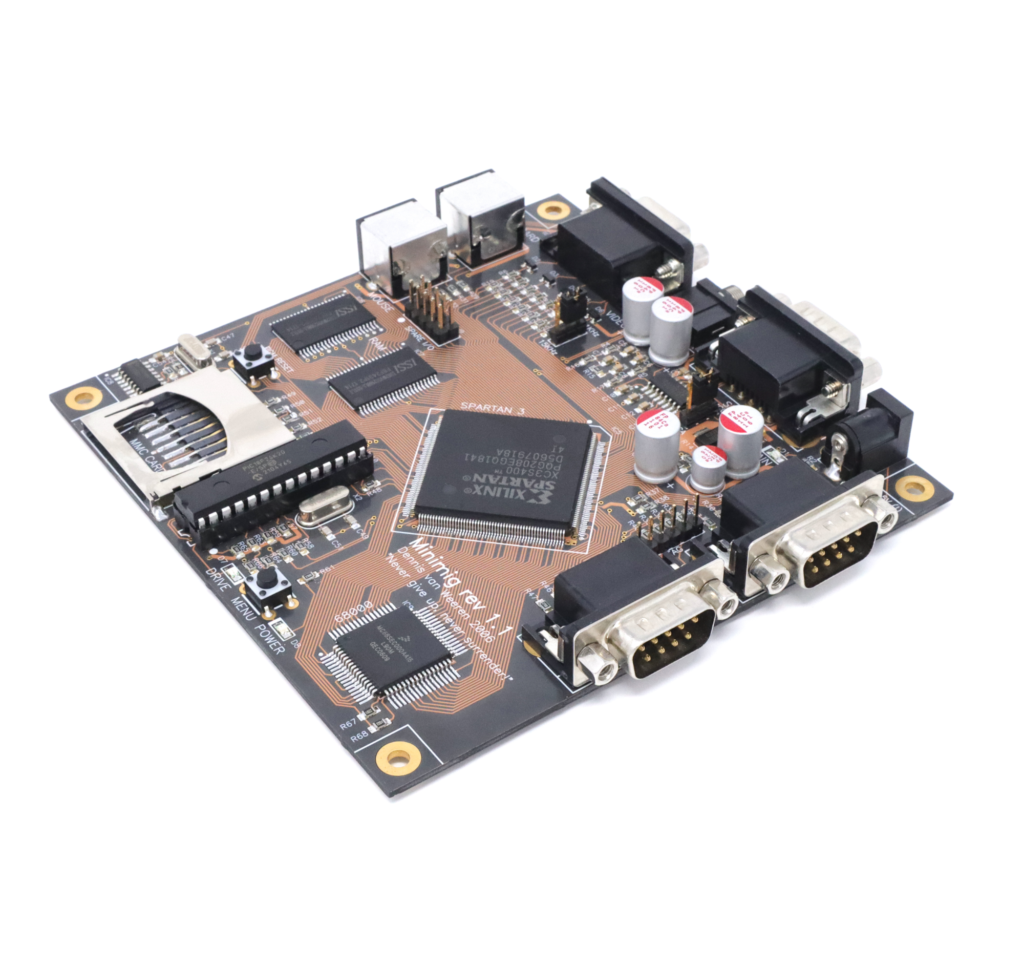

The Minimig, the first hardware emulator of an Amiga 500 system based on Dennis van Weeren’s open source projectThe original Amiga chipset (OCS and ECS) is re-implemented in FPGA.Furthermore, thanks to the onboard 68000 cpu, the same used on the original machine. the emulation of the original hardware is accurate and it is possible to run a wide number of games and applications simply copying the ADF files (they are images of the original floppy disks) on a standard SD card. Standard PS2 keyboard and mouse (commonly used on PCs) are supported as well as original Amiga mouse and joystick.The Minimig ARM controller replaces the original PIC chip on the Minimig FPGA board and offers the following new services:

• Faster data transfer (HDD and floppy)
• Support of hard files (HDF)
• Support of up to 4 virtual floppy drives (1x and 2x speed)
• Revised OSD menu.
• 68000 clock to 49MHz!

What’s Included

Minimig 1.1 board with SD card (16GB) containing Minimig FPGA core. Universal power supply.

Weight 0.5 kg
Dimensions 16 × 16 × 6 cm

Amiga 500+ ECS/OCS.
Can read Standard Amiga .ADF files.
Can use standard Amiga .HDD file.

Size and weight
