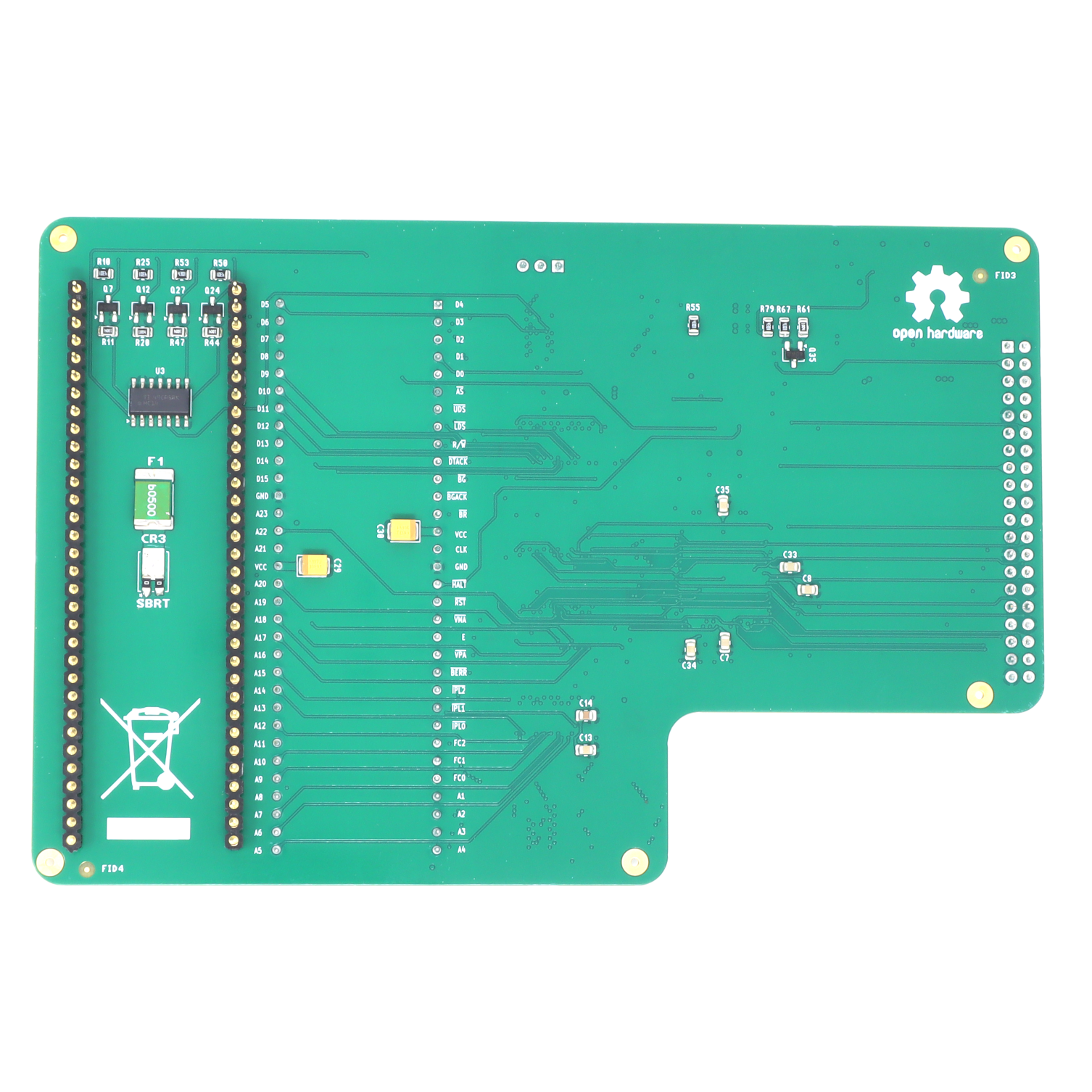

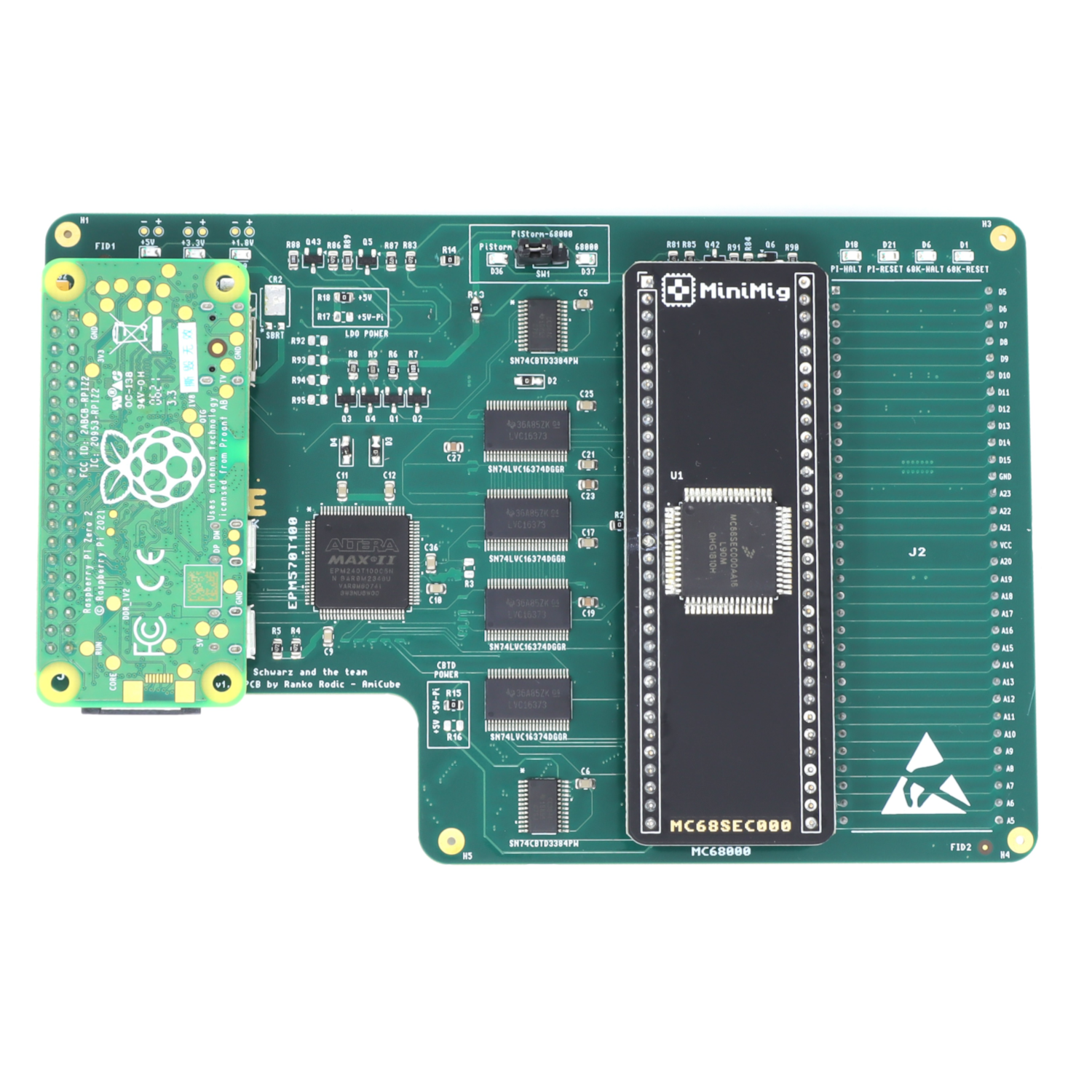

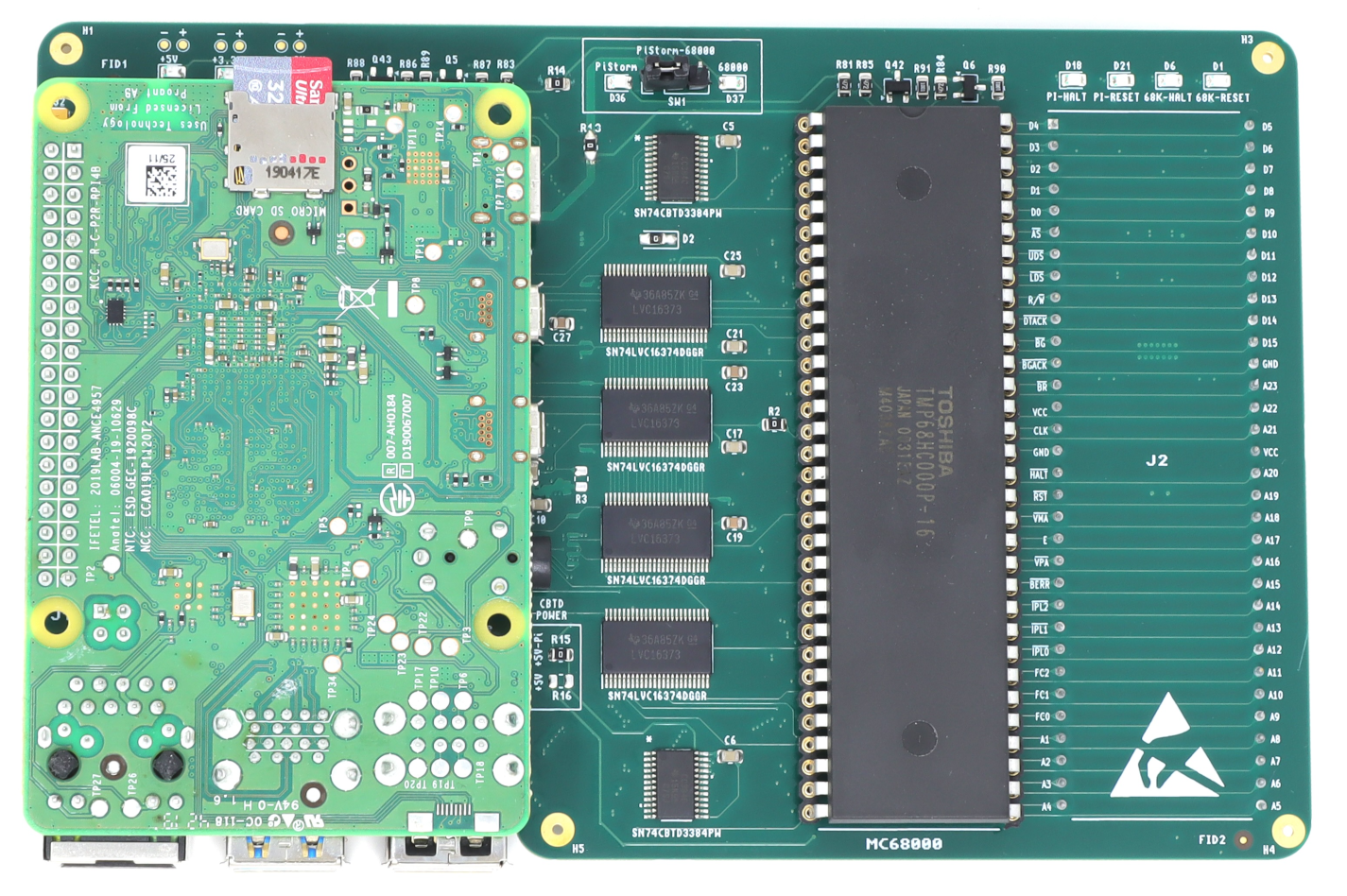

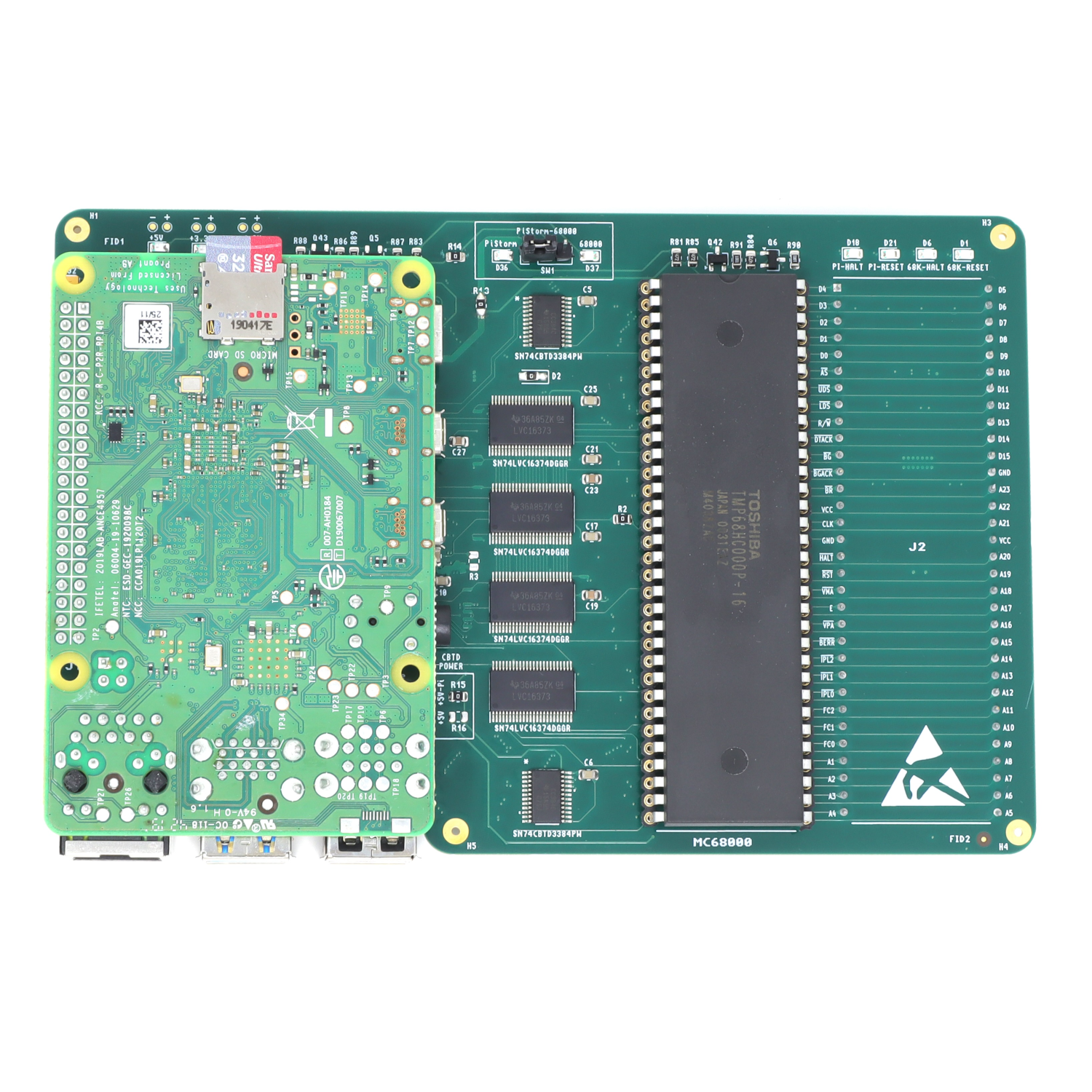

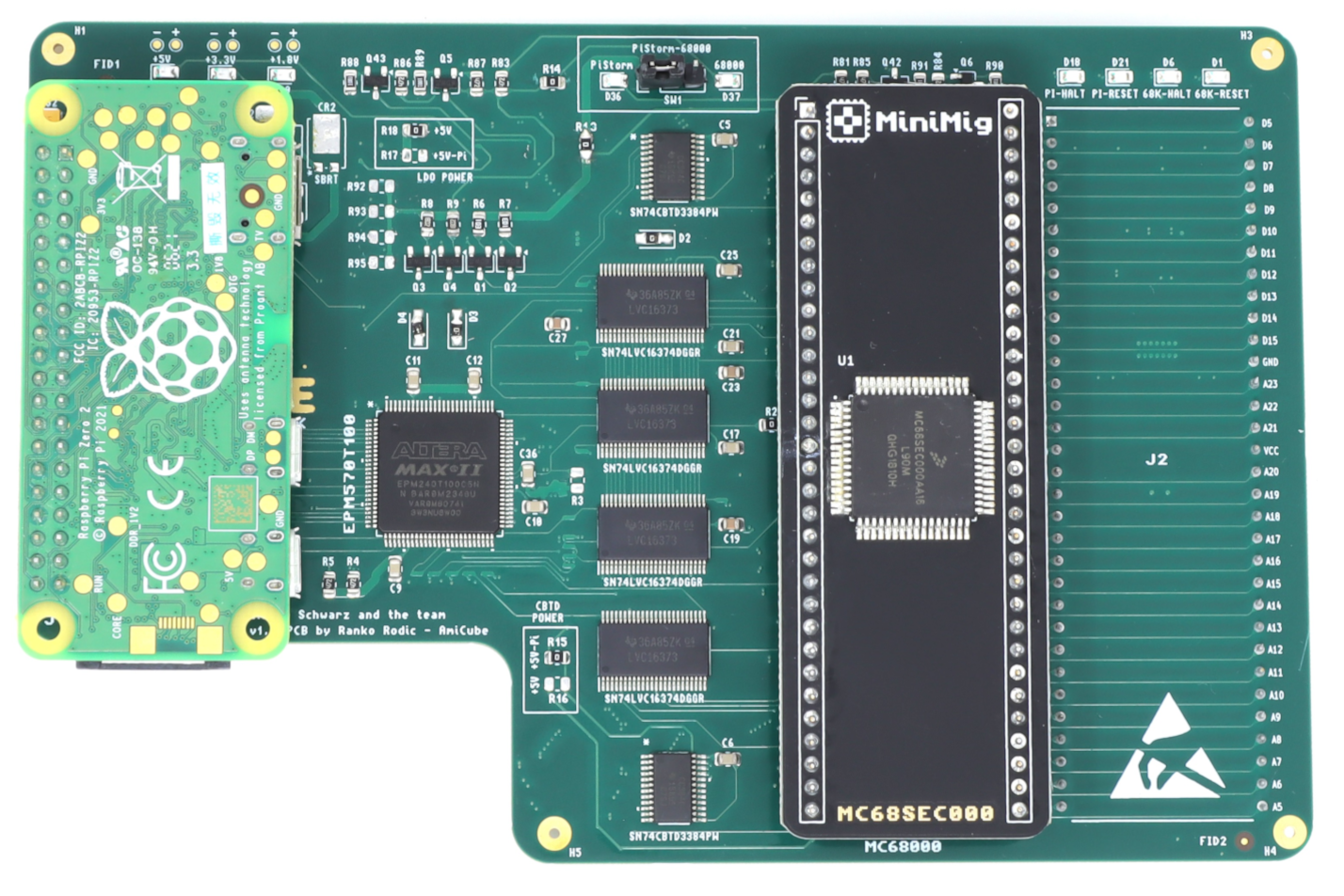

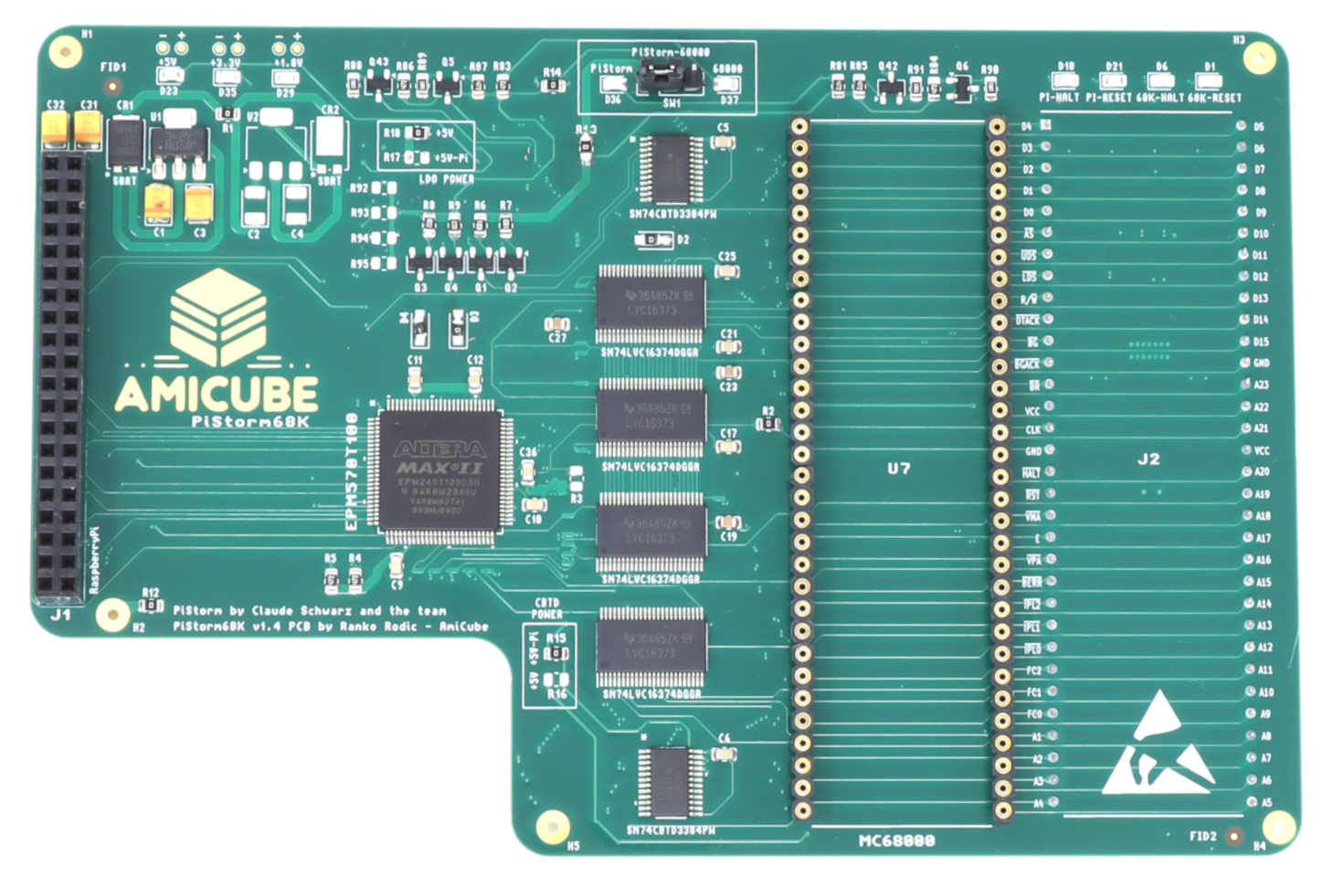

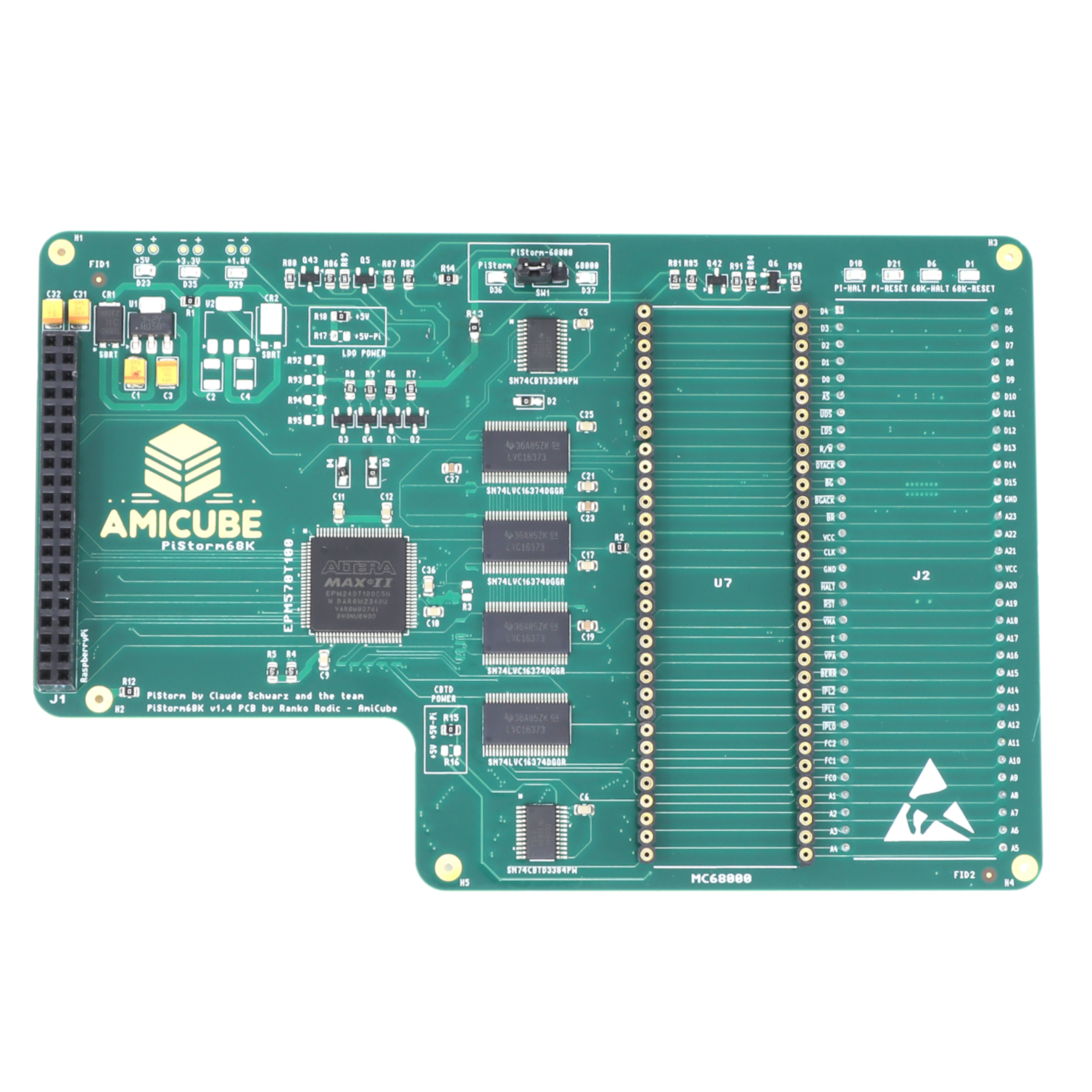

The PiStorm68K by AmiCube is a cutting-edge, special edition of the PiStorm accelerator designed to enhance retro computing experiences with unparalleled flexibility and performance. This innovative board seamlessly integrates a Raspberry Pi as a 68000 CPU emulator while also accommodating a physical Motorola 68000 CPU, allowing users to switch between emulated and real CPU operation with a convenient physical switch. This unique feature eliminates the need to open your system for CPU swaps, offering the best of both worlds for enthusiasts and tinkerers alike. Keep in mind that in this case board does not include MC68000 and RaspberryPi, you will need to source these parts yourself.
Key Features
- Dual CPU Capability: Effortlessly toggle between a Raspberry Pi-powered 68000 CPU emulator and a genuine Motorola 68000 CPU using an onboard physical switch, providing maximum compatibility and versatility.
- Premium 6-Layer PCB with ENIG Gold Immersion: Crafted with a high-quality 6-layer printed circuit board featuring Electroless Nickel Immersion Gold (ENIG) for superior conductivity, durability, and corrosion resistance.
- Enhanced Power Management: Equipped with a resettable fuse and improved decoupling for stable and reliable power delivery, ensuring optimal performance under demanding workloads.
- LED Indicators: Monitor power status at a glance with dedicated LED indicators for +5V, +3.3V, and +1.8V (when required), simplifying troubleshooting and system diagnostics.

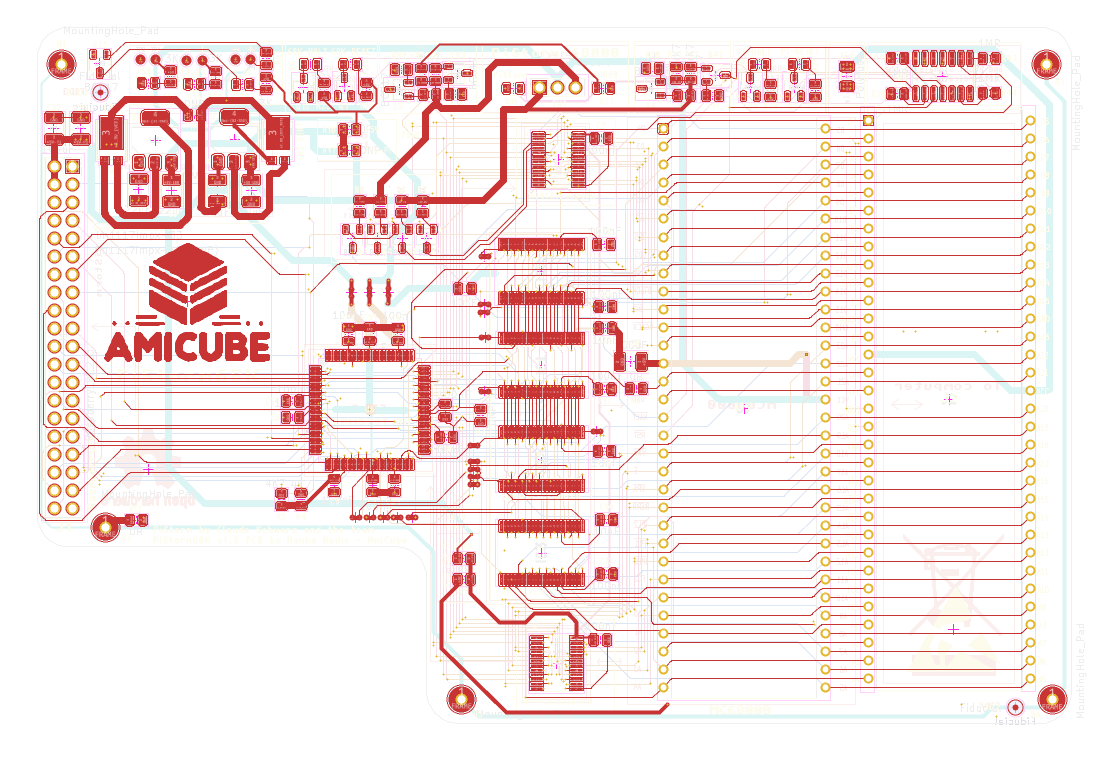

- Optimized Design for Larger Raspberry Pi Boards: The board’s thoughtful layout ensures easy connectivity for larger Raspberry Pi models, with connectors positioned to avoid interference and streamline installation.
- Iconic AmiCube Aesthetics: Showcasing the signature AmiCube design, the PiStorm68K combines functionality with a visually striking look that complements retro systems like the Minimig.
- Open-Source Commitment: The PiStorm68K is an open-source project, with Gerber files to be released soon, empowering the community to build and customize their own boards.
Purpose and Inspiration
The PiStorm68K was born out of a desire to simplify the retro computing experience. Tired of repeatedly opening the Minimig case to swap CPUs for different tasks, the creator envisioned a solution that combines the power of modern emulation with the authenticity of original hardware. Whether you’re running demanding applications via the Raspberry Pi’s emulation or seeking cycle-accurate performance with a real 68000 CPU, the PiStorm68K delivers unmatched flexibility without compromise.
Compatibility Notes
Please note that the PiStorm68K has not yet been tested with the Amiga 500 or Amiga 2000. While designed with broad compatibility in mind, users are encouraged to verify compatibility with their specific systems as testing progresses. At your own risk off course :))
Why Choose PiStorm68K?
The PiStorm68K is the ultimate accelerator for retro computing enthusiasts who demand both modern performance and classic authenticity. Its robust engineering, open-source ethos, and user-friendly features make it an ideal choice for upgrading your retro setup while preserving the nostalgic charm of vintage hardware.
Get ready to experience the best of both worlds with the PiStorm68K by AmiCube—where retro meets innovation.
