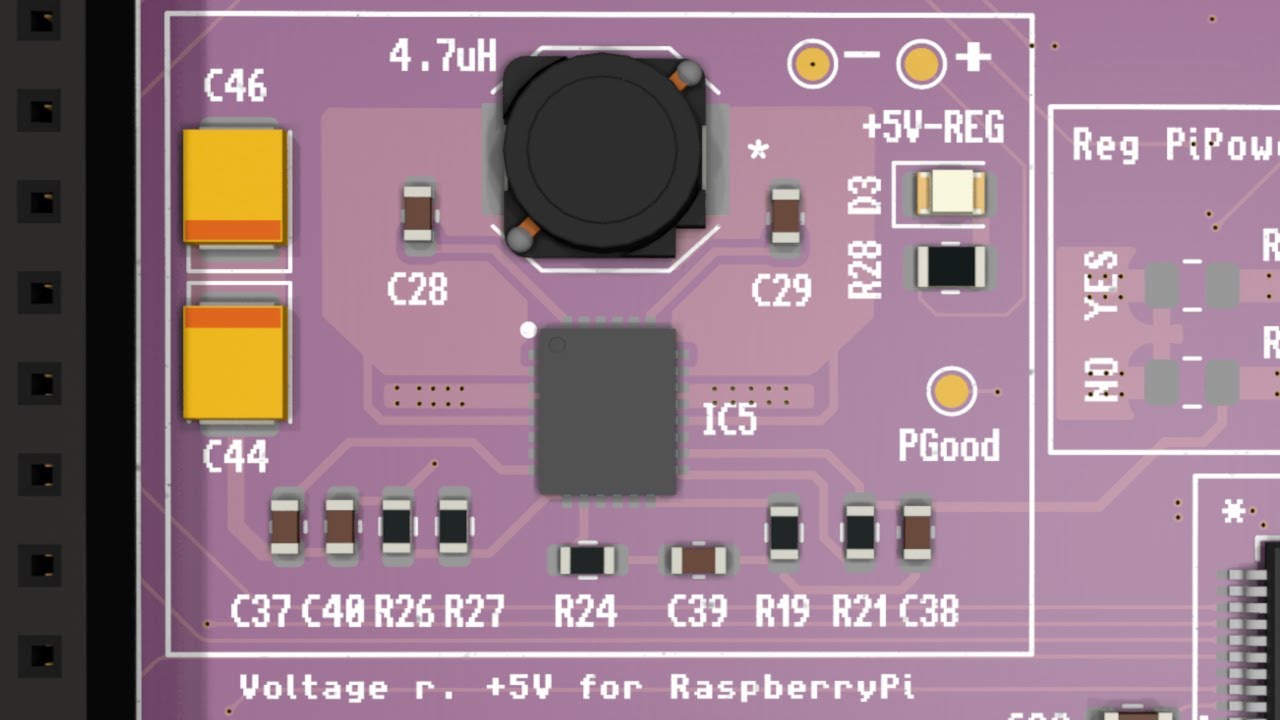

A newly assembled PiStorm68K prototype puts the revised power circuitry on the bench. This walkthrough examines the 5 V regulator, switching protection, pull-down resistors and the placement of the smaller components.
About this video
Tests with Raspberry Pi 4 and 3B+ provide context for voltage delivery, heat and sustained operation. The optional regulator selection and protection around the CPU-switching logic are explained alongside the assembly choices.
The recording also discusses further load and thermal testing and the practical tools needed to assemble the board. Its production plans reflect the state of the project in November 2025.
