PiStorm68K v1.8 by AmiCube
The PiStorm68K v1.8 by AmiCube is a special edition PiStorm accelerator board for retro computing enthusiasts, developers, and hardware tinkerers who want modern Raspberry Pi-based 68000 CPU emulation while keeping the option to use a real Motorola 68000 CPU.
The onboard selector lets you choose between the PiStorm/Raspberry Pi side and a physical MC68000 CPU without opening the system and manually swapping CPU hardware. This makes testing, development, compatibility checks, and everyday use much more convenient.
Key Features
- Dual CPU option: switch between Raspberry Pi-based 68000 CPU emulation and a real Motorola 68000 CPU using the onboard selector switch.
- Electronic CPU power switching: TPS22975NDSGT N-channel load switch devices handle CPU power path control, so the mechanical selector is used as a control signal rather than carrying CPU supply current directly.
- CPU selection LEDs: dedicated indicators show which CPU path is currently selected.
- CPU signal LEDs: additional activity LEDs assist with visual diagnostics, testing, and development.
- Special +5 V voltage regulation: the LTC3119IUFD synchronous buck-boost DC/DC converter helps provide a cleaner and more stable +5 V rail.
- Rail protection diodes: SBRT10U50SP5-13 devices are used on major rails to improve power design robustness.
- Power rail LEDs: onboard LEDs show +5 V, +3.3 V, and +1.8 V rail activity.
- Premium PCB construction: 6-layer PCB with ENIG gold immersion finish.
- Resettable fuse protection: helps protect against certain overcurrent conditions.
- Improved decoupling: additional decoupling supports stable operation under changing load conditions.
- Designed for larger Raspberry Pi boards: the layout provides better clearance and easier installation.
Why This Version Is Useful
PiStorm boards are powerful tools for experimentation, acceleration, and 68K system development. This AmiCube version adds a practical hardware selector so you can compare the PiStorm/Raspberry Pi path against a real 68000 CPU without repeatedly opening the system.
That is valuable when debugging software, checking hardware behavior, testing compatibility, or comparing original 68000 behavior against accelerated PiStorm operation.
Compatibility Notes
- Designed with Minimig and 68000-based retro systems in mind.
- Compatibility with Amiga 500 and Amiga 2000 has not yet been fully tested, so use in those systems is currently experimental and at your own risk.
- Performance and available features depend on the Raspberry Pi model, PiStorm software build, host system, and configuration.
Included

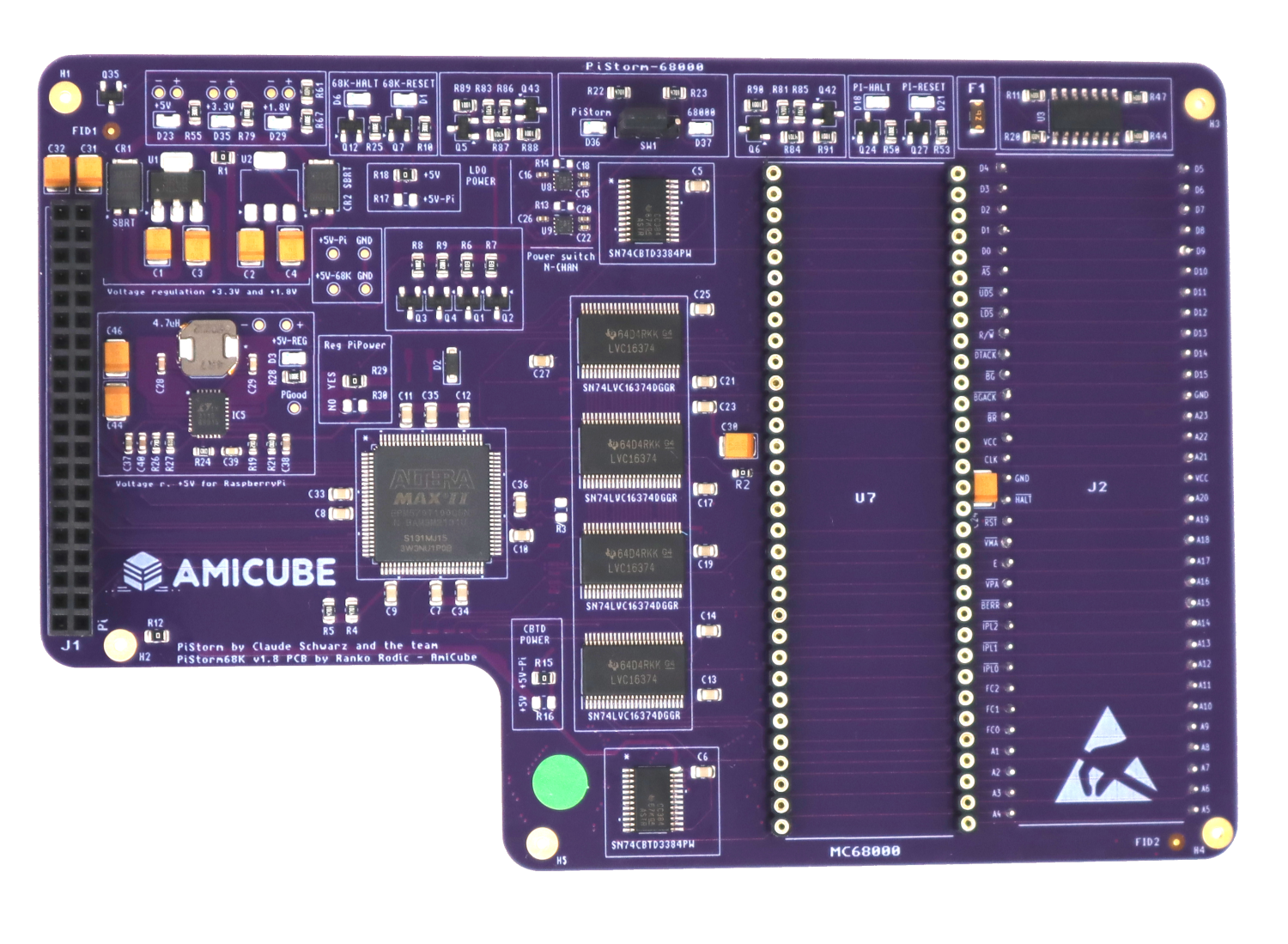

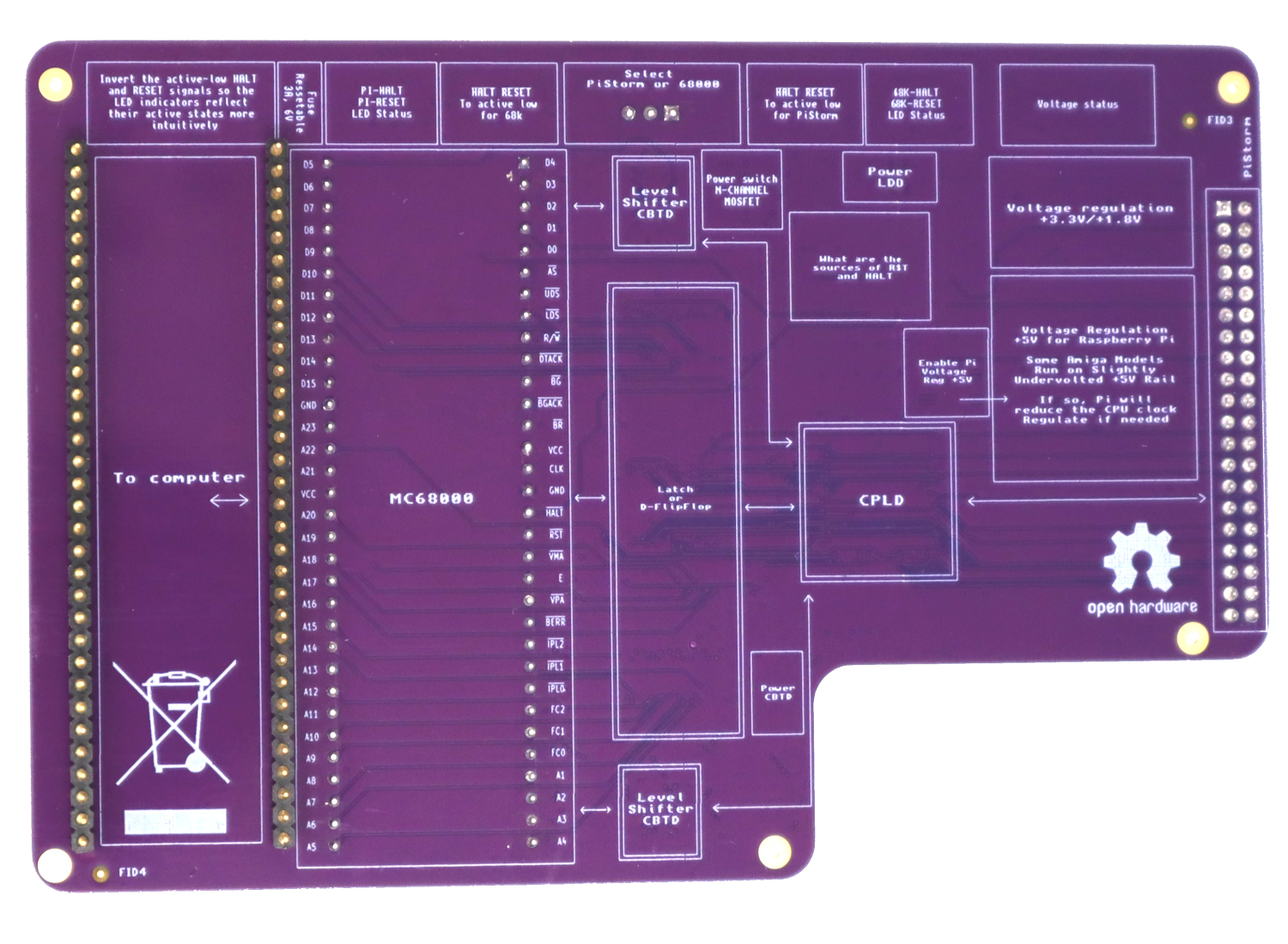

- PiStorm68K v1.8 by AmiCube Special Edition board only.
Not Included
- Raspberry Pi.
- MC68000 CPU.
- Cables, case, and other accessories unless specifically stated.
Related AMiCube Videos
Introducing the PiStorm 68k Card for MiniMig
Chosen because it directly introduces the PiStorm68K card for Minimig and covers the switchable CPU concept.
PiStorm68K Progress Update: New Board, New Features, and Great News
Chosen because it covers the newer board, voltage regulation, protection, and hardware refinements.
PiStorm68K: Dual 68000 CPU and PiStorm with Physical Switch Demo
Chosen because it is specifically about the dual CPU/PiStorm physical switch behavior.
